تفاصيل المنتج:
|
| وزن تحميل الآلة: | 1.5 طن | نموذج الآلة: | PT-1300/1650 |
|---|---|---|---|
| حزمة التصدير: | حقيبة فراغ مع حامل الحديد | تقرير اختبار الآلات: | لا مشكلة |
| طاقة المعدات: | 22 كيلوواط ، 380 فولت ، 3 فورم | الحد الأدنى لحجم المواد: | 50*60سم أو أكثر |
| دعم الفيديو: | يمكن أن تزود | ماكس حجم البليت: | 130 * 80 سم |
| إبراز: | 1.5 Tons Loading Weight Pile Turner Machine,PT-1300/1650 Model Paper Pile Turner,50*60cm Min Material Size Stack Turner,PT-1300/1650 Model Paper Pile Turner,50*60cm Min Material Size Stack Turner |
||

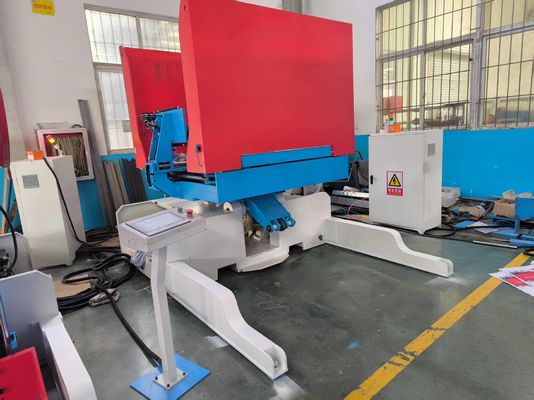

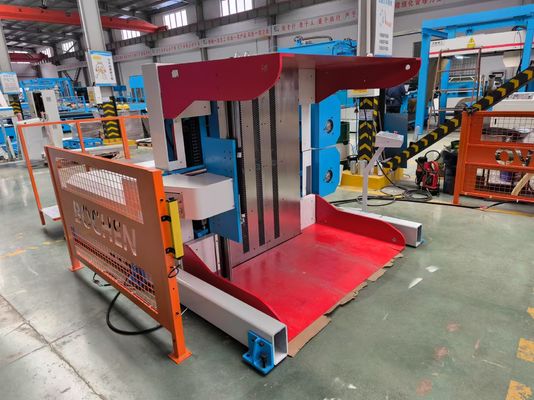

This pile turner machine is designed for dust removal and air alignment in the printing and packaging industry, significantly improving work efficiency and print quality.
The Pile Turner performs multiple functions including turning, airing, aligning, jogging, dust removal, drying, conditioning, ionizing, pallet changing, centering, and sheet pulling. It is essential equipment for enhancing productivity and print quality in industrial printing operations.
| Model | 1300 | 1450 | 1650 | 1900 |
|---|---|---|---|---|
| Max sheet size | 800×1300mm | 1100×1450mm | 1200×1700mm | 1400×1850mm |
| Min sheet size | 500×600mm | 500×600mm | 500×600mm | 500×600mm |
| Loading weight | 1000kg | 1400kg | 2500kg | 3000kg |
| Platform width | 1300mm | 1450mm | 1700mm | 1850mm |
| Max pile height | 1600mm | 1600mm | 1600mm | 1600mm |
| Min pile height | 800mm | 850mm | 850mm | 900mm |
| Power | 380V, 10KW | 380V, 12KW | 380V, 14KW | 380V, 22KW |
| Dimension | 10600×2400×2750mm | 11400×2600×2950mm | 13000×2700×2950mm | 13800×2900×2950mm |
| Machine weight | 3500kg | 4800kg | 6500kg | 8000kg |
