تفاصيل المنتج:
|
| نوع القيادة: | طريقة كهربائية | سماكة سمك الورق لأسفل: | 300gsm-10mm من الورق المقوى ويكون الناي |
|---|---|---|---|
| سرعة عمل الخط (م/دقيقة): | 150-160 | السعر المحدد FOB: | 80000 USD |
| الحد الأدنى لحجم الورقة: | 1500: 40*45 سم 1700: 45*45 سم | نوع التصفيح: | الورق المقوى+المملح+المملح |
| حجم المادة الأقصى: | 1500*1500mm و 1700*1700mm | حجم الأسطوانة الغراء: | قطر Anilox Roller 160mm |
| تعديل: | ذكي | ||
| إبراز: | Electrical Driving Sheet To Sheet Laminating Machine,300gsm-10mm Cardboard Corrugated Paper Laminator,B E FLUTE Cardboard Laminating Machine,300gsm-10mm Cardboard Corrugated Paper Laminator,B E FLUTE Cardboard Laminating Machine |
||
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
|---|---|---|---|---|
| Max size | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200×2100mm |
| Min size | 360×380mm | 380×400mm | 450×450mm | 500×500mm |
| Top Paper | 120-800g | |||
| Bottom paper | 300gsm-10mm Corrugated board and cardboard | |||
| Max speed | 150m/min | |||
| Power | 22kw | 25kw | 27KW | 30KW |
| Stick accuracy | ±1-2.5mm | |||

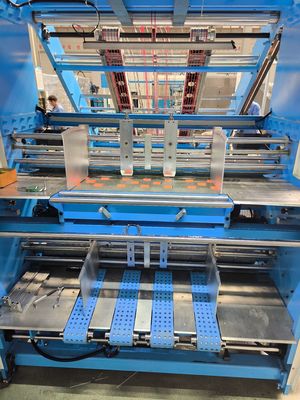

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.
Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.
CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.
Pre-pile system with touch screen configuration for efficient setup and orientation.

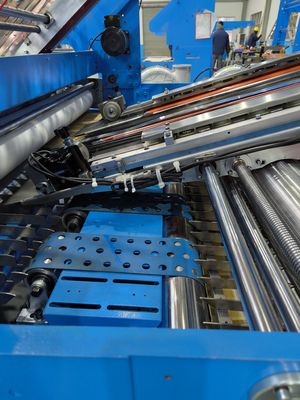

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

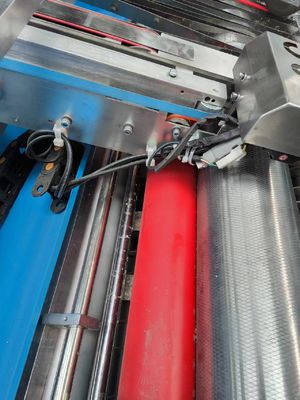

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.
Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.
