تفاصيل المنتج:
|
| نوع القيادة: | القيادة الكهربائية | سماكة سمك الورق لأسفل: | 400gsm-10mm من الورق المقوى والناي |
|---|---|---|---|
| سرعة عمل الخط (م/دقيقة): | 150-160 | السعر المحدد FOB: | 70000-85000 دولار أمريكي |
| الحد الأدنى لحجم الورقة: | 1500: 40*45 سم 1700: 45*45 سم | نوع التصفيح: | كرتون + مموج + كرتون |
| حجم المادة الأقصى: | 1500*1500mm و 1700*1700mm | حجم الأسطوانة الغراء: | قطر Anilox Roller 160mm |
| تعديل: | ضبط مفتاح واحد | ||
| إبراز: | 5ply flute laminating machine,servo control sheet laminator,corrugated paper laminating machine,servo control sheet laminator,corrugated paper laminating machine |
||
| Model | SFC-1500 | SFC-1700 | SFC-1900 | SFC-2200 |
|---|---|---|---|---|
| Max size | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200×2100mm |
| Min size | 440*400mm | 440×400mm | 450×450mm | 500×500mm |
| Top Paper | 120-800g | |||
| Bottom paper | 400gsm-10mm Corrugated board and cardboard | |||
| Max speed | 160m/min | |||
| Power | 22kw | 25kw | 27KW | 30KW |
| Stick accuracy | ±1-2.5mm | |||

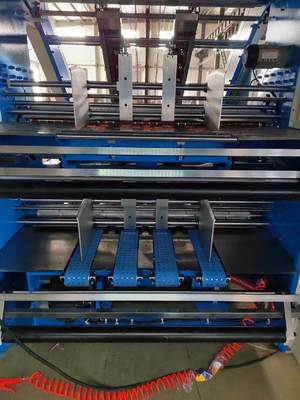

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.
Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.
CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.
Pre-pile system with touch screen configuration for efficient setup and orientation.
Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

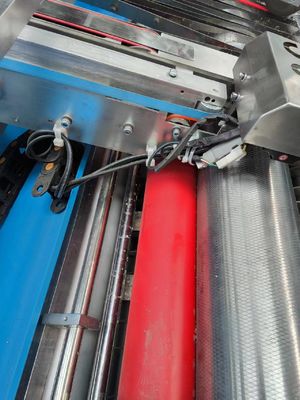

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.
Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.
